Thermoforming Applications Across Modern Manufacturing

Thermoforming has quietly become one of the most versatile plastic processing methods used across industries that demand speed, repeatability, and design flexibility. Rather than being confined to a single product category, the process now supports a wide spectrum of outputs, ranging from single-use disposable items to structural components used in tightly regulated environments. Understanding where thermoforming fits into a broader manufacturing strategy helps engineers and buyers make more informed sourcing decisions.

At its core, thermoforming involves heating a plastic sheet until it becomes pliable, then shaping it over or into a mold using vacuum, air pressure, or mechanical assistance. The principle is simple, but achieving consistent wall thickness, tight tolerances, and clean surface quality requires careful control of sheet temperature, tooling design, and cycle timing. When these variables are managed well, thermoforming becomes a cost-efficient alternative to injection molding for parts that do not require extremely tight tolerances or complex internal undercuts.

Three sectors illustrate this versatility particularly well: medical device packaging, electronics component protection, and food or beverage service items. Each imposes different requirements on material selection, cleanliness, and dimensional accuracy, yet all rely on the same underlying forming principle described above.

   Across many manufacturing facilities, thermoformed trays and containers account for a substantial share of disposable and semi-disposable plastic parts, largely because tooling investment is lower than comparable injection molded tooling, which shortens the path from design to production run.

Medical Thermoformed Plastic Products: Precision Under Pressure

Medical device packaging is one of the most demanding applications for thermoforming, since the packaging often functions as part of the sterile barrier system rather than simple product protection. Trays that hold surgical instruments, diagnostic kits, or implantable devices must maintain dimensional stability through sterilization cycles, resist puncture during transport, and allow controlled peel-open access in a clinical setting.

Material selection for medical thermoforming typically favors polymers with predictable, well-documented behavior under radiation or ethylene oxide sterilization. Because medical packaging is often produced in cleanroom or otherwise controlled environments, thermoforming lines serving this sector usually integrate additional filtration, static control, and inspection steps compared to general industrial forming lines.

Material Type	Typical Use	Sterilization Compatibility	Notes
Rigid PETG	Instrument trays	Ethylene oxide, gamma	Good clarity, stable dimensions
High-impact polystyrene	Diagnostic kit trays	Ethylene oxide	Cost efficient, moderate stiffness
Medical-grade PVC	Blister packaging	Gamma, e-beam	Strong barrier properties
Polypropylene	Autoclavable trays	Steam autoclave	Higher heat resistance

Regulatory expectations, including internationally recognized packaging standards for sterile barrier systems, push manufacturers toward extensive validation of seal strength, peel force, and dimensional consistency before a design reaches production volume. Thermoforming is often preferred over injection molding for these low-to-mid volume medical trays because tooling changes are comparatively fast and inexpensive, which matters when a device design goes through several revisions before final approval.

Electronics Plastic Thermoforming: Protecting Sensitive Components

Printed circuit boards, connectors, and other sensitive electronic components require packaging that does more than hold a part in place. Static dissipative or conductive trays, typically produced from carbon-loaded polymer sheet, protect components from electrostatic discharge during handling, transport, and automated assembly. Pocket geometry is engineered around the exact component footprint so that parts do not shift or contact one another during vibration.

These trays are frequently designed for nesting and stacking, which reduces storage volume and supports high-speed automated pick-and-place lines. Wall uniformity becomes critical here, since a thin spot in a pocket wall can allow flexing that misaligns a component during automated handling.

Cycle times for electronics trays are usually shorter than for thicker medical trays, since sheet gauge is lighter and forming depth is often shallower. This allows manufacturers to run larger batches within a single shift while still holding tolerances suitable for automated equipment.

Packaging Solutions and Industrial Tray Manufacturing

Beyond medical and electronics applications, thermoforming supports a broad range of general packaging and industrial handling products, from retail clamshells to reusable dunnage trays used in automotive parts logistics. The choice of forming method has a direct effect on achievable detail, wall thickness range, and part size.

Forming Method	Typical Wall Thickness	Best Suited For	Detail Level
Vacuum forming	0.5 to 3 millimeters	Large, shallow parts	Moderate
Pressure forming	0.5 to 4 millimeters	Cosmetic panels, sharp detail	High
Twin-sheet forming	3 to 10 millimeters combined	Hollow, rigid structures	Moderate

Common packaging outputs include:

Retail clamshells for consumer goods display
Produce and food service trays
Blister cards for small hardware and components
Industrial dunnage trays for repeated-use parts transport
Protective inserts for shipping boxes

Industrial dunnage trays deserve particular attention because they are engineered for hundreds or thousands of reuse cycles rather than a single trip. This changes material selection toward tougher, more impact-resistant sheet stock, and often calls for reinforced rib patterns that would not be necessary in a disposable retail tray.

How a Plastic Cup Making Machine Fits Into the Thermoforming Ecosystem

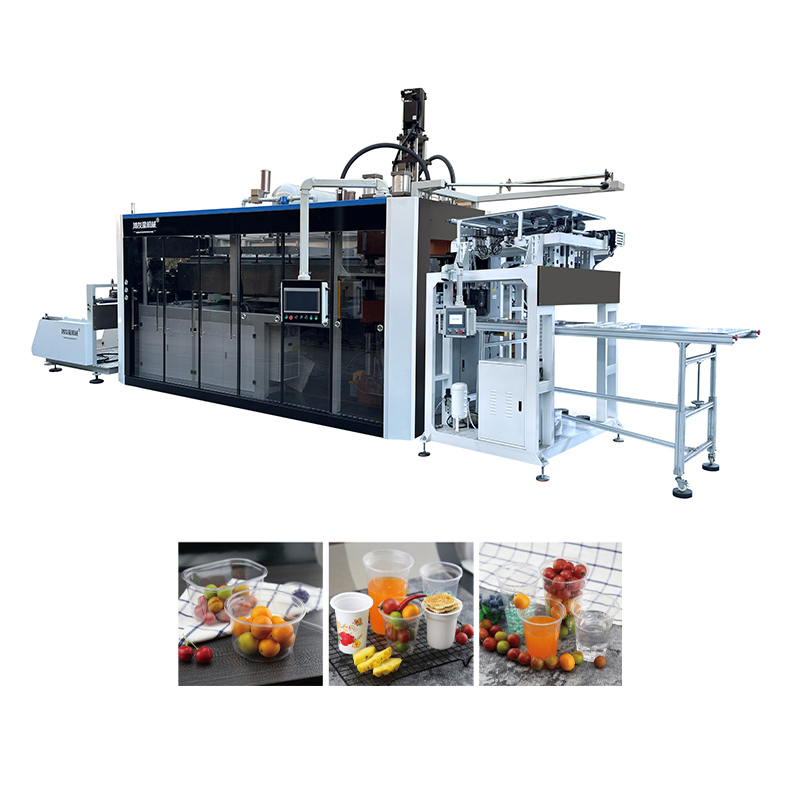

Food service cups, lids, and small containers represent a high-volume corner of the thermoforming world, distinct from the lower-volume medical and electronics trays described earlier. Producing these items efficiently generally requires a dedicated plastic cup making machine , built around continuous roll-fed sheet rather than individual cut sheets, since cup production runs are measured in tens of thousands of units per shift rather than hundreds.

These lines typically combine several stages within one continuous process: sheet unwinding, heating, forming, in-line trimming, and automatic stacking. Because cups are relatively simple in geometry compared to a component tray, cycle speed becomes the dominant design priority, and tooling is built with multiple cavities to maximize output per cycle.

Material choice for cup production commonly centers on polypropylene or PET sheet, chosen for a balance of clarity, stiffness, and food contact suitability. Businesses evaluating automated cup forming equipment generally weigh cavity count, stacking height consistency, and changeover time between cup sizes as the main factors that determine real-world throughput, rather than headline cycle speed alone.

Stacking height consistency in particular affects downstream packing automation. If cup wall thickness or rim geometry varies slightly between cycles, stacks can become uneven, which slows manual or automated bagging operations further down the line.

Custom Thermoformed Designs: Key Considerations

Moving from a concept sketch to a production-ready thermoformed part involves a series of interconnected decisions. Getting these right early avoids costly tooling revisions later.

Material selection : balance cost, clarity, chemical resistance, and sterilization or food contact requirements specific to the end use.
Wall thickness uniformity : deep draw ratios can thin material significantly in corners, so geometry should minimize extreme depth-to-width ratios where possible.
Draft angles : adequate draft on vertical walls allows clean part release from the mold without scuffing or distortion.
Tooling material : aluminum tooling suits higher volume runs with better heat transfer, while composite or wood tooling suits prototyping and lower volumes.
Cycle time trade-offs : thicker sheet and deeper draws generally mean longer heating and cooling time, which affects total unit cost.
Secondary operations : trimming method, printing, and assembly steps should be planned alongside the forming tool, not added afterward.

Prototyping with lower-cost tooling before committing to a full production mold remains a practical way to validate fit and function without the full capital cost of hardened tooling.

High-Precision Plastic Components: What Determines Quality

Precision in thermoforming is relative to the application, and expectations differ sharply between a disposable cup and a medical instrument tray. The following ranges reflect general industry experience rather than any single production line.

Dimensional Tolerance

Typically plus or minus 0.25 to 0.5 millimeters for standard trays, tighter with pressure forming

Surface Finish

Ranges from matte industrial texture to high-gloss cosmetic finish depending on tool surface

Repeatability

Consistent tooling temperature control keeps part-to-part variation within design tolerance across a full run

Cycle Time

Ranges widely, from a few seconds for thin cup stock to over a minute for thick industrial parts

Regular tool maintenance, sheet gauge consistency from the material supplier, and stable oven temperature profiles all contribute more to sustained quality than any single piece of equipment. Facilities that track these variables over time generally see fewer rejected parts than those relying on end-of-line inspection alone.

A Practical View of the Thermoforming Process Flow

While details vary by machine type and product, most thermoforming operations follow a similar sequence of stages, illustrated below.

Each stage carries its own control points: sheet feeding must maintain even tension, heating requires zone-by-zone temperature control to avoid sagging or scorching, forming pressure and vacuum timing determine detail capture, trimming accuracy affects fit with mating parts, and final inspection catches thickness or cosmetic defects before packing.

Frequently Asked Questions

Q1: What types of plastic are most commonly thermoformed?

Polystyrene, polypropylene, PET or PETG, and PVC are among the most widely used sheet materials, each chosen based on clarity, stiffness, chemical resistance, and end use requirements such as food contact or sterilization compatibility.

Q2: How does thermoforming compare to injection molding for packaging trays?

Thermoforming generally requires lower tooling investment and shorter lead times for large, shallow parts, while injection molding suits smaller parts needing very tight tolerances or complex three dimensional features.

Q3: What makes medical thermoformed packaging different from standard packaging?

Medical packaging must often function as part of a validated sterile barrier system, which adds requirements around seal strength, peel force consistency, and compatibility with sterilization methods that standard packaging does not need to meet.

Q4: How is cup production different from tray or component thermoforming?

Cup production typically runs on continuous roll-fed lines built for very high unit volumes and simple, repeatable geometry, whereas tray and component thermoforming often runs lower volumes with more complex pocket shapes and tighter tolerances.

Q5: What factors most affect thermoformed part quality over a long production run?

Consistent sheet gauge from the material supplier, stable oven temperature profiles, and routine tooling maintenance tend to have a greater cumulative effect on quality than any single piece of equipment.
